Feedgas Preparation

Natural gas is compressed and sulphur removed by hydrodesulphurisation. The desulphurised gas is cooled and then contacted with hot water over a bed of packing to saturate the gas. Additional steam generated in the boiler is used to achieve the required steam to carbon ratio for steam reforming. The total feedstream is then pre-heated prior to reforming.


Synthesis Gas Generation

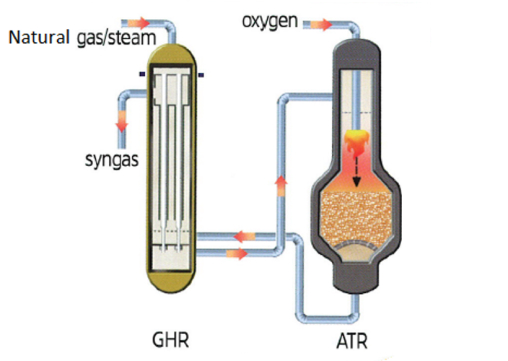

Preheated gas flows from the pre-heater to the tube side of the gas heated reformer (GHR) where it is partly reformed over a catalyst. The partly reformed gas flows from the GHR to the secondary reformer where the bulk of the reforming takes place. The heat required for the endothermic reforming in both the GHR and secondary reformer is provided by partially burning the GHR effluent with pure oxygen.
The three main chemical reactions which occur are:

  • Steam reforming – CH4 + H2O = CO + 3H2
  • Shift reaction – CO + H2O = CO2 + H2
  • Combustion – 2H2 + O2 = 2H2O

The net effect of these reactions is the production of a synthesis gas stream which is composed of carbon monoxide (CO), carbon dioxide (CO2) and hydrogen (H2).


Methanol Synthesis

The synthesis gas joins the synthesis loop recycle gas and is fed to the methanol converter. The converter is a tubular cooled converter design where the gas is preheated to reaction temperatures inside the tubes as it flows up through the hot catalyst bed. The hot reacted gas leaves the converter and provides heat to the saturator water circuit before finally being cooled. Crude methanol is sent to distillation whilst the uncondensed gases are recirculated back to the converter.
The two main chemical reactions which occur are:

  • CO + 2H2 = CH3OH
  • CO2 +3H2 = CH3OH + H2O

The net effect of these reactions is the production of crude methanol.



Crude methanol is let down in pressure and fed to the product purification section. This section consists of a topping column and a refining column. The product methanol specification is for a water content of less that 0.10 wt %. The water bottoms from the refining column have a specification of less than 100 ppm of methanol and are recycled back to the saturator.

GHR Low emission technology

  • No burner emissions
  • Lowest purge emission
  • Renewable potential
